NMDS — reference vs revegetation (draft)

Bray–Curtis ordination of Laws Type E and reference parcel composition

Modified

July 25, 2026

Draft / sandbox — what this means

What: This page is an open, versioned analysis artifact—methods and numbers stay visible while tools mature (Snow et al. 2026).

Why: Closed file-share workflows hide how compliance figures were produced. Publishing drafts lets partners and the public inspect assumptions early, without treating prototypes as adopted policy or Technical Group findings.¹

Companion pages

STM (draft) — ABAG → early seral → reference-like scrub
Reference · Revegetation
Methods paper: STM / NMDS for Type E (draft)

Purpose

What: Non-metric multidimensional scaling (NMDS) maps parcel–year samples so distances reflect community dissimilarity (McCune and Grace 2002). Species values are relative cover (row sums = 1); distance is Bray–Curtis; fitting uses vegan::metaMDS (Oksanen et al. 2024)—the same core pipeline as ICWD’s stm helpers.

Why: Compliance uses absolute (capped) cover. Relative composition asks a different question: do revegetation parcels (ABAG / early seral starts) sit apart from reference scrub in species space, and do later years move toward the reference cloud?²

Methods (Laws adaptation)

Reveg: LAW090/094/095 (2022–2025 workbook); LAW118/129 combined for 2025.
Reference: long-format reference CSVs (transect hits as cover).
Aggregate within parcel–year; row-normalize; drop species in <2 samples.
Bray–Curtis → metaMDS (k = 2); stress on the figure.
Color by role (reference vs reveg); shape by parcel family.

Run 0 stress 0.1877248
Run 1 stress 0.1883394
Run 2 stress 0.2076997
Run 3 stress 0.1813941
... New best solution
... Procrustes: rmse 0.05320044  max resid 0.3045848
Run 4 stress 0.1877248
Run 5 stress 0.2086552
Run 6 stress 0.2098296
Run 7 stress 0.1915483
Run 8 stress 0.1915483
Run 9 stress 0.2093531
Run 10 stress 0.1832765
Run 11 stress 0.1883394
Run 12 stress 0.1813941
... Procrustes: rmse 1.15249e-05  max resid 5.776634e-05
... Similar to previous best
Run 13 stress 0.1915483
Run 14 stress 0.2302263
Run 15 stress 0.1813941
... Procrustes: rmse 9.156305e-06  max resid 4.5309e-05
... Similar to previous best
Run 16 stress 0.1998426
Run 17 stress 0.2056783
Run 18 stress 0.1813941
... Procrustes: rmse 2.990254e-06  max resid 1.1739e-05
... Similar to previous best
Run 19 stress 0.2032681
Run 20 stress 0.1877248
*** Best solution repeated 3 times

[1] TRUE

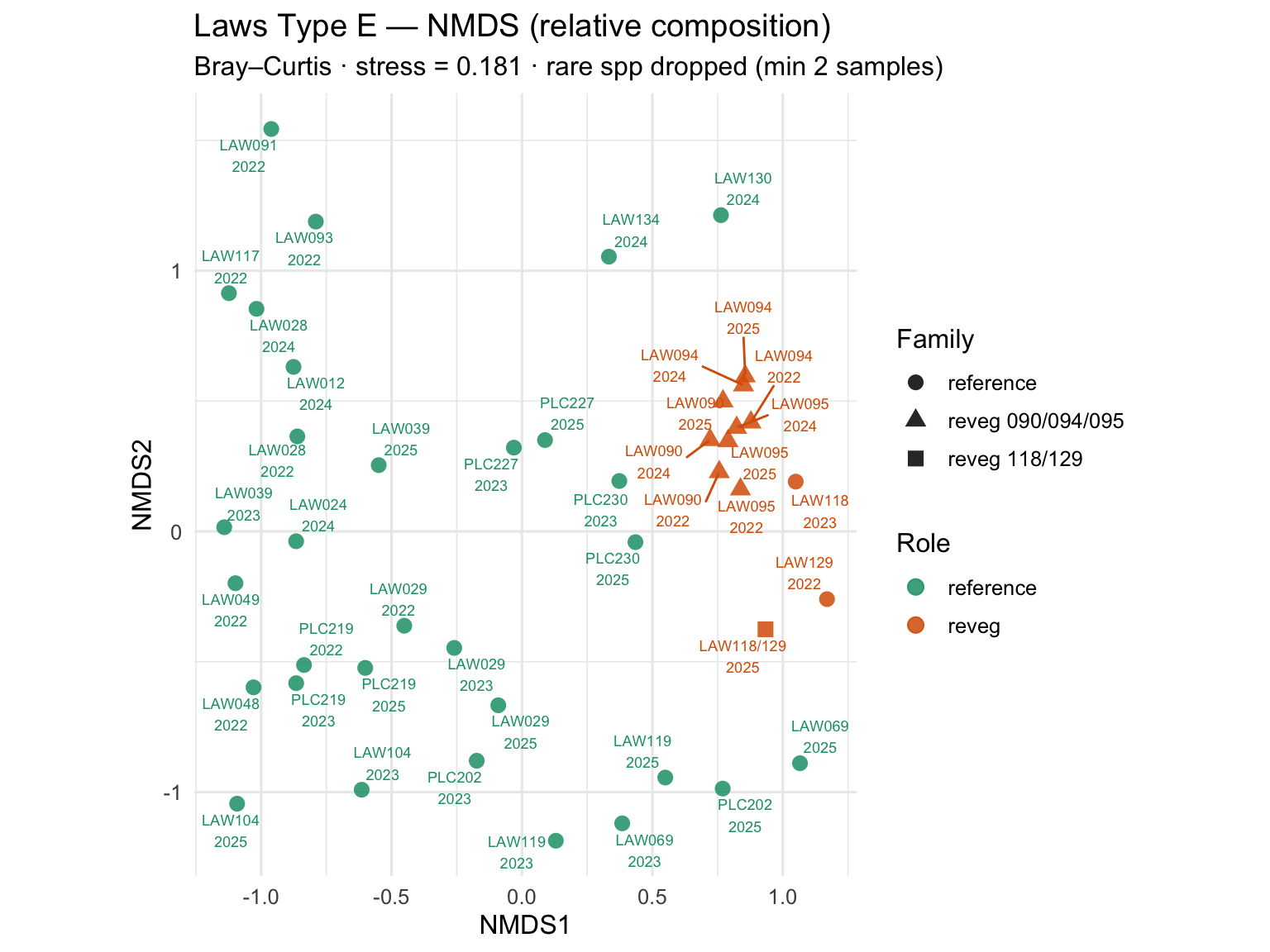

Figure 1. NMDS of parcel–year relative composition: reference vs Laws Type E revegetation samples.

Table 1. Parcel–year samples in the NMDS (download: docs/laws_nmds_scores.csv).

Reading the plot for the STM

Pattern	Interpretation
Reference cloud	Composition near ESD potential (Type A scrub phases)
Reveg apart / on the edge	Still in ABAG / early seral space (STM)
Same parcel moves toward the cloud across years	Trajectory hypothesis for assisted recovery³

Limitations

Relative cover omits bare as a taxon; ABAG barrenness is understated.
Reference parcels are not filtered to Gravelly Loam alone; reveg targets are (laws_type_e_esd.csv).
PERMANOVA / envfit live in stm; this page is the Laws-facing first cut.

Code

code/nmds_laws.R · upstream stm/code/nmds_functions.R

References

McCune, Bruce, and James B. Grace. 2002. Analysis of Ecological Communities. Gleneden Beach, Oregon: MjM Software Design.

Oksanen, Jari, Gavin L. Simpson, F. Guillaume Blanchet, Roeland Kindt, Pierre Legendre, Peter R. Minchin, R. B. O’Hara, et al. 2024. vegan: Community Ecology Package. https://CRAN.R-project.org/package=vegan.

Snow, Tasha, Christopher Holdgraf, Wilson Sauthoff, Jessica Scheick, Ellianna Abrahams, Joanna Millstein, Sanjay Bhangar, et al. 2026. “A Path to Better Science Through Co-Creation and Open Infrastructure.” Perspectives of Earth and Space Scientists 7 (1): e2025CN000295. https://doi.org/10.1029/2025CN000295.

Footnotes

Sandbox means placeholders and sparse labels are allowed during prototyping; challenge numbers in the code and sources, not from a screenshot alone.↩︎
Row-normalization removes magnitude so sparse vs dense stands can still be compared by who is present; bare ground is not a species here, so ABAG barrenness is only partly visible.↩︎
LAW118/129 are mostly 2025-only so far; 090-group has 2022–2025.↩︎
